TPD4E001DRLR IC Electronic Components Four-channel transient voltage suppressor for protecting diode array
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | TPD4E001DRLR | Description | Four-channel Transient Voltage Suppressor For Protecting Diode Array |
|---|---|---|---|
| D/C | Usually Within Two Years | Warranty | 365days |
| Quality | 100% Original Brand | Packaging Details | Standard Box |
| Condition | Original Product | Shipping By | China Post/DHL/FEDEX/UPS/TNT/DPEX/KAS |
| High Light | TPD4E001DRLR/Four-channel Transient Voltage Suppressor For Protecting Diode Array | ||
Product Description

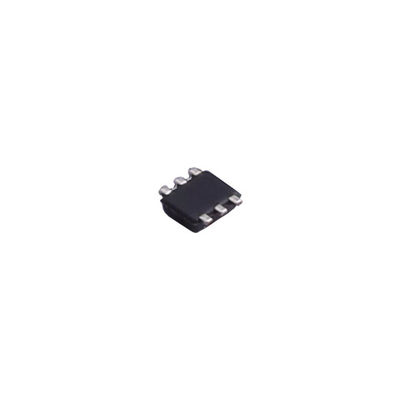

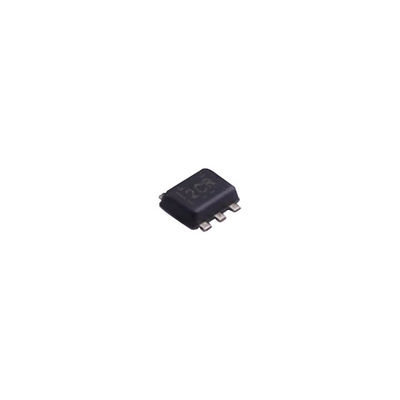

TPD4E001DRLR IC Electronic Components Four-channel transient voltage suppressor for protecting diode array
Product description
Part number TPD4E001DRLR is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on TPD4E001DRLR detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.
Product details/Parameters
| Operating voltage | 950 mV |
| Capacitance | 1.5 pF |
| Breakdown voltage | 11 V |
| Number of channels | 4 |
| Number of pins | 6 |
| Dissipated power | 100 W |
| Clamping voltage | 100 V |
| Minimum reverse breakdown voltage | 11 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating temperature (Min) | -40 ℃ |
| Package | SOT-6 |
| Part of the recommended inventory list | ||
| TPD4E001DBVR | TI | SOT-23-6 |
| TPD4E002DRLR | TI | SOT-553 |
| TPD4E001DRSR | TI | WDFN-6 |
| TPD4E004DRYR | TI | UFDFN-6 |
| TPD4E001DPKT | TI | UFDFN-6 |
| TPD4E002DRL2 | TI | SOT-553 |
| TPD4E001DCKR | TI | SC-70-6 |
| TPD4E001QDBVRQ1 | TI | SOT-23-6 |
| TPD4E001DPKR | TI | UFDFN-6 |
| TPD4E001DRLRG4 | TI | SOT-553-6 |
The TPD4E001 is a four-channel transient voltage suppressor (TVS) based on an electrostatic discharge (ESD) protection diode array.The TPD4E001 is rated to the highest level of ESD surge dissipation as specified in the international IEC 61000-4-2 (Level 4).The device has 1.5 pFIO capacitance per channel, making it ideal for use in high-speed data IO interfaces.The ultra-low leakage current (< 1na Max) makes it suitable for precision analog measurements in applications such as glucose meters and heart rate monitors.
advantages
1. Parts source determine price, The source of our parts is very initial.
2. Price can be negotiable based on quantity; delivery terms;
3. We will try to help customers to reduce freight charge.
4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
FAQ
Q1: What company do we belong to?
A1: We are a trader and agent.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
