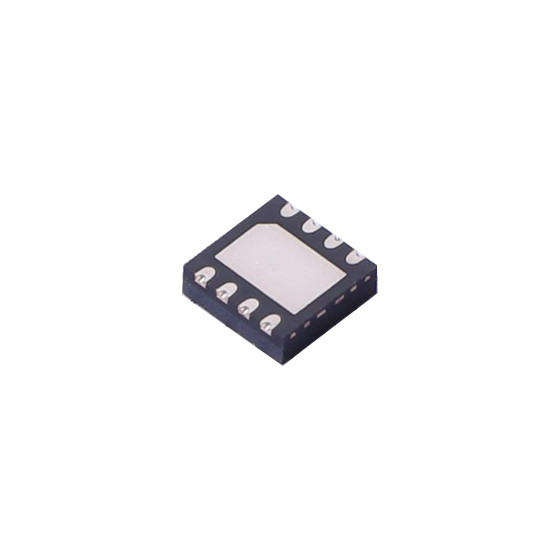

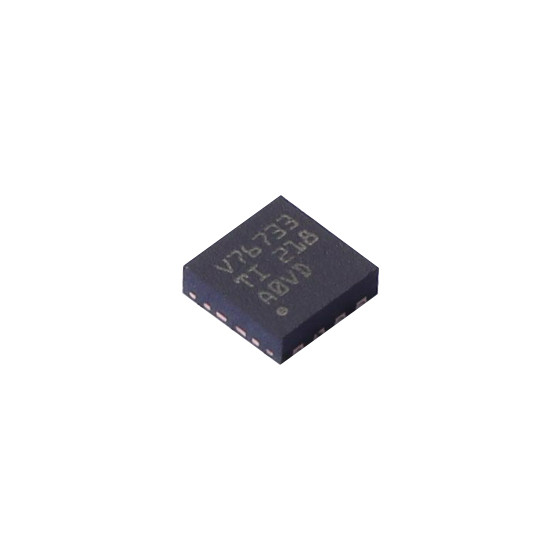

TLV76733QWDRBRQ1 IC Electronic Components Linear Regulator with Wide Input Range
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | TLV76733QWDRBRQ1 | Description | Linear Regulator With Wide Input Range |
|---|---|---|---|
| D/C | Usually Within Two Years | Warranty | 365days |
| Quality | 100% Original Brand | Packaging Details | Standard Box |
| Condition | Original Product | Shipping By | China Post/DHL/FEDEX/UPS/TNT/DPEX/KAS |
| High Light | TLV76733QWDRBRQ1/Linear Regulator With Wide Input Range | ||
Product Description
TLV76733QWDRBRQ1 IC Electronic Components Linear Regulator with Wide Input Range
Product description
Part number TLV76733QWDRBRQ1 is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on TLV76733QWDRBRQ1 detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.
Product details/Parameters
| Output type | adjustable; fixed |
| Maximum input voltage | 16 V |
| Output voltage | 3.3 V |
| Maximum output current | 1A |
| Differential pressure | 800mV |
| Standby current | 50ua |
| Noise | 60uVrms |
| Feature enabled; | overcurrent protection |
| Operating temperature | -40 ℃ ~ + 150 ℃ |
| Output polarity | positive |
| Number of output channels | 100% |
| Part of the recommended inventory list | ||
| TLV76050DBZT | TI | SOT-23-3 |
| TLV76033DBZT | TI | SOT-23-3 |
| TLV76733DRVR | TI | SON |
| TLV76050DBZR | TI | SOT-23-3 |
| TLV76701DRVR | TI | SON |
| TLV76012DBZR | TI | SOT-23-3 |
| TLV76750DRVR | TI | SON |
| TLV76033DBZR | TI | SOT-23-3 |
| TLV76701DRVT | TI | SON |
| TLV76708DRVR | TI | SON |
The TLV767-Q1 is a linear regulator with a wide input range, supporting input voltages from 2.5V to 16 V and load currents up to 1A.The output range is 0.8 V to 12V, and in the adjustable version the output can be as high as 14.6 V.The device has a wide input voltage range, so it can be powered by a transformer secondary winding and a regulated power rail (for example, 10 V or 12 V).In addition, the device has a wide output voltage range to generate bias voltages for silicon carbide (SiC) gate drivers and microphones, as well as to power microcontrollers (MCUs) and processors.With 1% output accuracy, the TLV767-Q1 can power power-demanding digital loads.The internal soft start circuit reduces the inrush current during startup, thereby reducing the input capacitance.High-bandwidth PSRR performance is greater than 70dB at 1 kHz and greater than 46dB at 1 MHz, thereby helping to attenuate the switching frequency of the upstream DC/DC converter and minimize post-regulator filtering.With high ripple rejection from 20Hz to 20 kHz, this device is ideal for powering audio components.
advantages
1. Parts source determine price, The source of our parts is very initial.
2. Price can be negotiable based on quantity; delivery terms;
3. We will try to help customers to reduce freight charge.
4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
FAQ
Q1: What company do we belong to?
A1: We are a trader and agent.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
