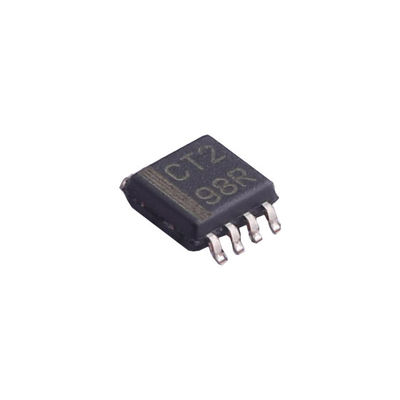

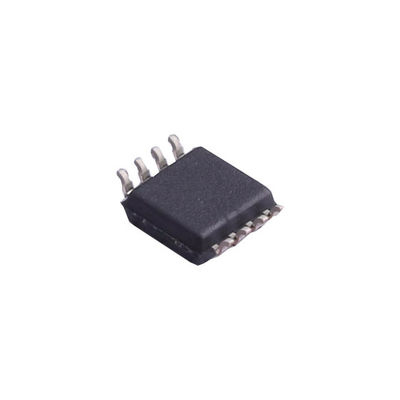

SN74LVC2T45DCTR IC Electronic Components Dual-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | SN74LVC2T45DCTR | Description | Dual-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation |
|---|---|---|---|
| D/C | Usually Within Two Years | Warranty | 365days |
| Quality | 100% Original Brand | Packaging Details | Standard Box |
| Condition | Original Product | Shipping By | China Post/DHL/FEDEX/UPS/TNT/DPEX/KAS |
| High Light | SN74LVC2T45DCTR/Dual-Bit Dual-Supply Bus Transceiver With Configurable Voltage Translation | ||
Product Description
SN74LVC2T45DCTR IC Electronic Components Dual-Bit Dual-Supply Bus Transceiver
Product description
rated over
a −40°C to +105°C temperature
Part number SN74LVC2T45DCTR is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on SN74LVC2T45DCTR detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.
Product details/Parameters
| Power supply voltage (DC) | 1.65V ~ 5.50V |
| Operating voltage | 1.65V ~ 5.5V |
| Output current | 50 mA |
| Number of circuits | 1 |
| Number of channels | 2 |
| Number of pins | 8 |
| Number of digits | 2 |
| Transmission delay time | 3.90 ns |
| Voltage node | 5.00 V |
| Output current drive | -1.00 mA |
| Number of inputs | 2 |
| Part of the recommended inventory list | ||
| SN74LV1T34DBVR | TI | SOT23-5 |
| SN74LV1T34DCKR | TI | SC70-5 |
| SN74LV1T125DCKR | TI | SC70-5 |
| SN74LV1T04DBVR | TI | SOT23-5 |
| SN74LV1T08DCKR | TI | SC70-5 |
| SN74LV1T125DBVR | TI | SOT23-5 |
| SN74LV1T126DCKR | TI | SC70-5 |
| SN74LV1T08DBVR | TI | SOT23-5 |
| SN74LV1T04DCKR | TI | SC70-5 |
| SN74LV1T32DCKR | TI | SC70-5 |
| SN74LV1T02DBVR | TI | SOT-23-5 |
| SN74LV1T86DBVR | TI | SOT23-5 |
he VNS14NV04P-E is monthic device made
using STMicroelectronics™ VIPower™ M0
Technology, intended for replacement of standard
Power MOSFETs in DC to 50 KHz applications.
This 2-bit non-inverting bus transceiver uses two independent configurable power rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 5.5V. The B port is designed to track VCCB. VCCB accepts any supply voltage value from 1.65 to 5.5V. This allows universal low-voltage bidirectional translation between 1.8V, 2.5V, 3.3V, and 5V voltage nodes. The SN74LVC2T45 is designed to enable asynchronous communication between two data buses. The logic level of the direction control (DIR) input activates either the B port or the A port output. When the B port output is activated, the device sends data from the A bus to the B bus, and when the A port output is activated, the device sends data from the B bus to the A bus. The input circuits on the A and B ports are always active and must have a logic high or low applied to prevent excessive ICC and ICCZ. The SN74LVC2T45 is designed to power the DIR input circuitry from VCCA. The device is fully specified for partial power-off applications using Ioff. The Ioff circuitry disables the output, preventing destructive current from flowing back through the device when it is powered off.
advantages
1. Parts source determine price, The source of our parts is very initial.
2. Price can be negotiable based on quantity; delivery terms;
3. We will try to help customers to reduce freight charge.
4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
FAQ
Q1: What company do we belong to?
A1: We are a trader and agent.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
