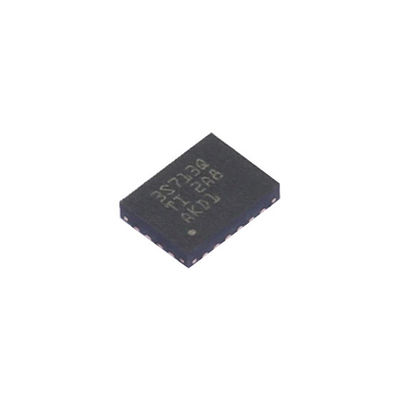

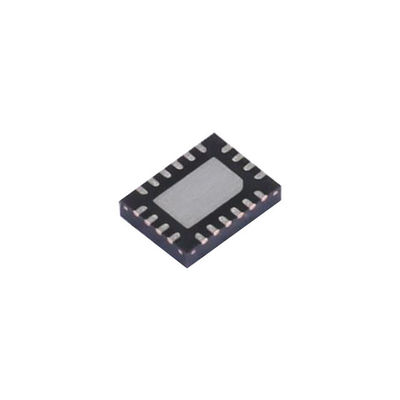

TPD3S713QRVCRQ IC Electronic Components Automotive USB 2.0 interface protection device with adjustable current limit

Part number TPD3S713QRVCRQ1 is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.

For more information on TPD3S713QRVCRQ1 detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.

Product details/Parameters

The TPD3S713x-Q1 is a single-chip solution that provides short-to-battery, short-circuit, and ESD protection for high-speed data and power lines in automotive USB hubs, audio head units, telematics, and media interface applications.The integrated data switch provides best-in-class bandwidth to minimize signal degradation in the event of a USB short to battery.Bandwidth of up to 1.2GHz leverages the long tether cables common in automotive USB environments to achieve a clean USB 2.0 high speed 480Mbps eye graph.The short-to-battery protection isolates the internal system circuitry from any overvoltage condition on the VBUS, DP _ IN, and DM _ IN pins.On these pins, the TPD3S713x-Q1 handles overvoltages up to 18 V for hot-swap and DC events, and turns off an internal switch that protects the upstream transceiver from harmful voltage and current spikes.The VBUS pin also provides a flexible, adjustable, current-limiting load switch (from 50 mA to 600 mA), saving the system power budget if the port only requires tens of milliamps of current.

advantages

1. Parts source determine price, The source of our parts is very initial.

2. Price can be negotiable based on quantity; delivery terms;

3. We will try to help customers to reduce freight charge.

4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
