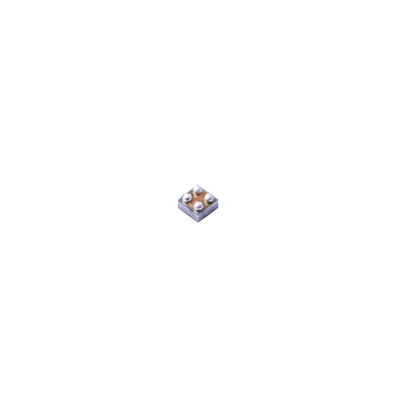

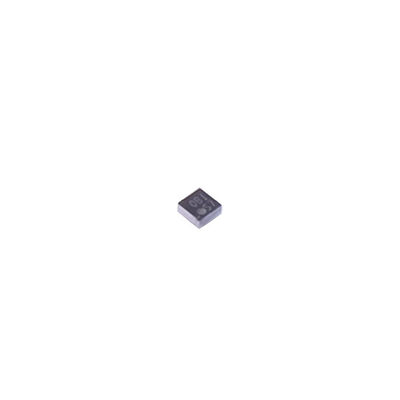

TPS22915CYFPR IC Electronic Components A small, low RON, single-channel load switch with controlled slew rate

Part number TPS22915CYFPR is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.

For more information on TPS22915CYFPR detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.

Product details/Parameters

The TPS22914/15 is a small, low RON, single-channel load switch with a controlled slew rate.The device includes an N-channel metal-oxide-semiconductor field-effect transistor (MOSFET) that operates over an input voltage range of 1.05 V to 5.5 V and supports a maximum continuous current of 2 A.The switch is controlled by one switch input and is capable of connecting a low voltage control signal directly.The small size and low RON make this device ideal for space-constrained, battery-powered applications.The wide input voltage range of this switch makes it a versatile solution for many different voltage rails.The controlled rise time of the device greatly reduces the inrush current caused by large load capacitances, thereby reducing or eliminating power consumption.The TPS22915 further reduces the overall solution size by integrating a 143 Ω pull-down resistor for fast output discharge (QOD) when the switch is turned off.The TPS22914/15 is available in a small, space-saving 0.78 mm × 0.78 mm, 0.4mm pitch, 0.5mm height, 4-pin wafer chip scale (WCSP) package (YFP).The device is specified to operate from – 40 ° C to + 105 ° C in a naturally ventilated environment.

advantages

1. Parts source determine price, The source of our parts is very initial.

2. Price can be negotiable based on quantity; delivery terms;

3. We will try to help customers to reduce freight charge.

4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
